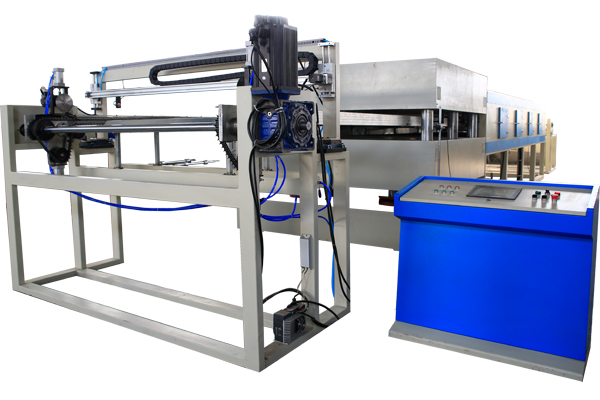

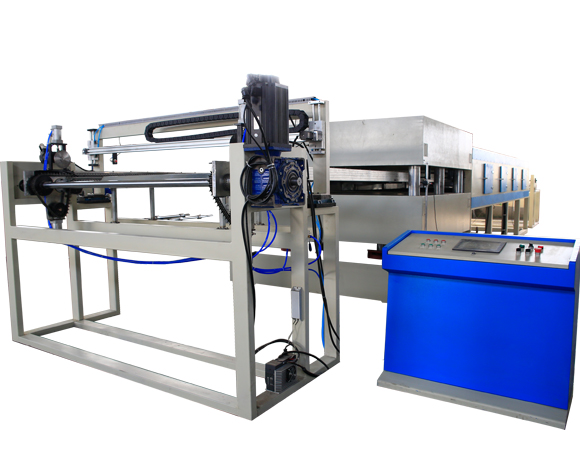

Crawling pad creasing machine

Generally, the crawling pad is composed of XPE or EPE surface covered with environmental protection color film, with diverse patterns and beautiful colors. Crawling pad originated from Japan and South Korea, the awareness of the Chinese market is also gradually formed. Crawling pad can be used for infant crawling exercise, can also be carried out at home outing, convenient and practical.

XPE or EPE coils are pressed into creases after heating, fold along the crease, easy to carry out, easy to store the family.

Parameters

 characteristic

PLC touch screen control system, greatly improve the stability of the equipment, it has self-monitoring function, simple and fast operation, with multi - group data memory storage function, change the mold, no need to re-set the temperature, pressure, time and so on.

Servo motor feeding, accurate and error-free, suitable for the continuous production of the whole roll of materials, saving labor and materials

The pressure forming part adopts the four-cylinder and six-column automatic balancing structure, and the thickening table can ensure the pressure forming precision of each position of 0.1mm

Pressure plate dual speed variable，flexible pressure, so that the material molding effect is better.

Hydraulic system, matching electrical appliances are international famous brand products, energy saving, low noise, simple operation, high efficiency

Heating part control by the frequency converter, fan driven hot air circulation heating, heating effect uniform and stable

Equipment can be customized according to customer requirements
