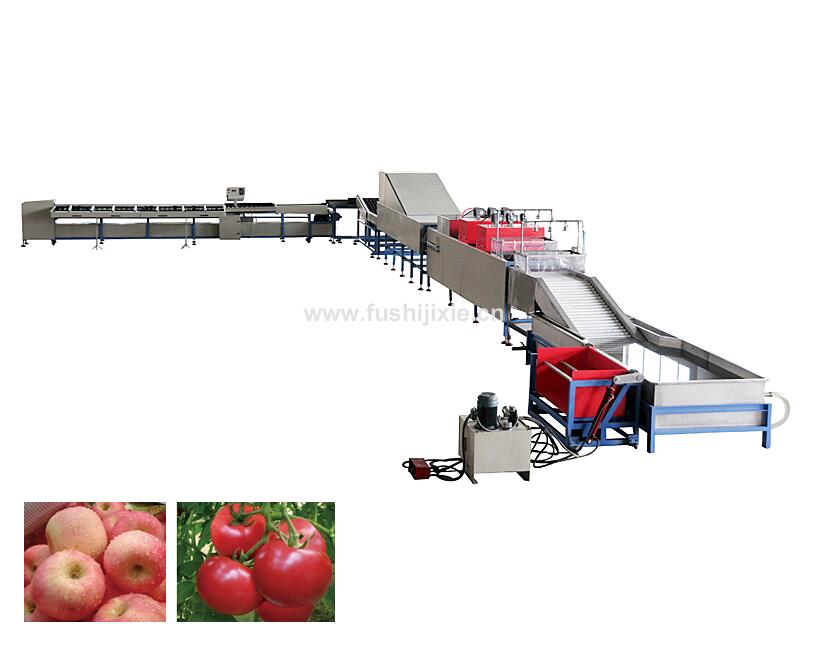

水果清洗打蠟分選機設備，可以美容各種水果

A. Washing and loading part 清洗上果部分

  a. Power: 0.75KW, infinite speed regulating reducer. 功率：0.75kw,無極調速減速機

b. Structure: stainless steel water tank, grading and elevating platform, and high pressure water pump. 框架結構：不銹鋼水槽，分檢提升臺，高壓水泵。

c. Installed with stainless steel water tank with screen for recycling water. High-pressure water pump is employed to wash the fruits, like surf bath, to make sure the fruit is clean and to be elevated orderly. (water tank size: 4700*2100*750mm) 配有不銹鋼水槽，內裝有循環用水過濾網，利用高壓水泵，采用沖浪浴原理來清洗水果，并保證果品清潔及順序上升（水槽：4700*2100*750mm                                          d. After washing in the stainless steel water tank, the fruits will be elevated to the straight selection platform, and the plastic roll will move forward and rotate, which will make it easier for the inferior fruits to be selected out.  (fruit elevator: 3700 * 1150 * 1150mm) 果品經水槽清洗后，提升至平面分檢臺，采用塑料滾筒前進同時并自轉，并噴淋水果表面，有利于果品殘次品的挑檢。 （提升果：3700 * 1150 * 1150mm）

  e. Supplied with foot rest. .配有分檢腳踏架

B. Rinsing and waxing part 沖淋打蠟部分

a. Power: 0.75kw, infinite speed regulating reducer. 功率：0.75kw, 無極調速減速機

b. Size: 5300X1150X1800mm 尺寸：5300X1150X1800mm

c. Structure: brush, rinsing outlet, timer, wax spraying outlet. 結構：毛刷，噴頭，計時器，噴蠟嘴                                          d. The rotating brushes are used to clean the fruit after washing, and rinsing will be done at the sixth brush to clean out the attached materials. 利用毛刷自轉二次清潔果品表面并噴淋沖洗，在毛刷第六支處噴淋，清除附著物

e. During the conveying process, the brushes will clean out the water on the fruit, and they are also used to brighten the fruit. Four cooling fans are installed in the middle of the brushes for drying the fruits。前進過程中利用毛刷瀝干果品表面水分，同時利用毛刷上光；在毛刷中部裝有4 軸流風機，強制風干。

f. During the second half of conveyance, timer is used to control electromagnetic wax spraying outlet, where edible wax is sprayed. The interval time and wax spraying time can be set freely. After spraying, the rotated brushes will make the wax sprayed homogeneously spread on the fruit. 進入后半部分采用定時器控制電磁噴蠟嘴，噴涂食用臘。此裝置間隔時間及噴蠟

間完全可以自由設定，噴涂后利用毛刷自轉，將臘液涂均。

C. Heating and drying part 加熱烘干部分

   a. Power: 0.75KW, infinite speed regulating reducer. 功率：0.75KW，無極調速減速機

b. Size: 5000*1550*1950mm 尺寸：5000*1550*1950mm

c. Heated by natural gas burner and intelligent temperature controller is installed. The temperature control can be set to be automatic and manually edited.利用天然氣燃燒機加熱，并配有智能型溫控儀，溫度設定自動控溫，可自由設定。

d. The temperature in the drying tunnel is from low to high. And the wind in the tunnel is circularly blown. Centrifugal blower is employed to make the inside air to be convected. 烘道溫度先低后高，采用閉式內循環，并配有離心風機，使熱空氣實現內部對流。

e. Place the waxed fruit in the drying box, and let the surface water evaporated. The drying process could improve the brightness of the fruit. 將涂臘后的果品送入烘干箱內，蒸發掉表面水，并提高果品光亮度

D. Automatic loader for grading machine 選果機的自動上果部分

   a. Power: 1.1KW, frequency converter controls speed regulation. 功率：1.1KW，無極調速減速機

b. Size: 3400*1650*1200mm 尺寸：3400*1650*1200mm

c. Use conveyor belt and rubber-tired to load fruit to the fruit grading machine.

  使用傳送帶和膠輪把水果輸送到選果機。

E. Single-lane Electronic fruit grading machine單線電子選果機部分

  a. Power: 3.0KW 功率：3.0KW

b. Size: 16000X1650X1200mm 尺寸：16000X1650X1200mm

c. Speed: 40000-42000pcs/hour 速度：40000-42000個/小時

d. Electronic controlling system: Siemens elements text display, CPU, Weighing module, weighing sensor 電子控制系統：西門子文本顯示器，CPU，稱重模塊，稱重傳感器。

e. Grade: 9 grades，9 compartments 等級：9個等級

f. Operating system: Chinese/English Interface 操作系統：中文/英文界面

F. Type of control 控制類型

  a. Washing and waxing part: step less speed adjusting 清洗打蠟部分：無級調速控制

  b. Electronic fruit grading machine: frequency control 電子選果機：變頻器控制
